Note:- Please note upon delivery a forklift will be required to unload this machine.

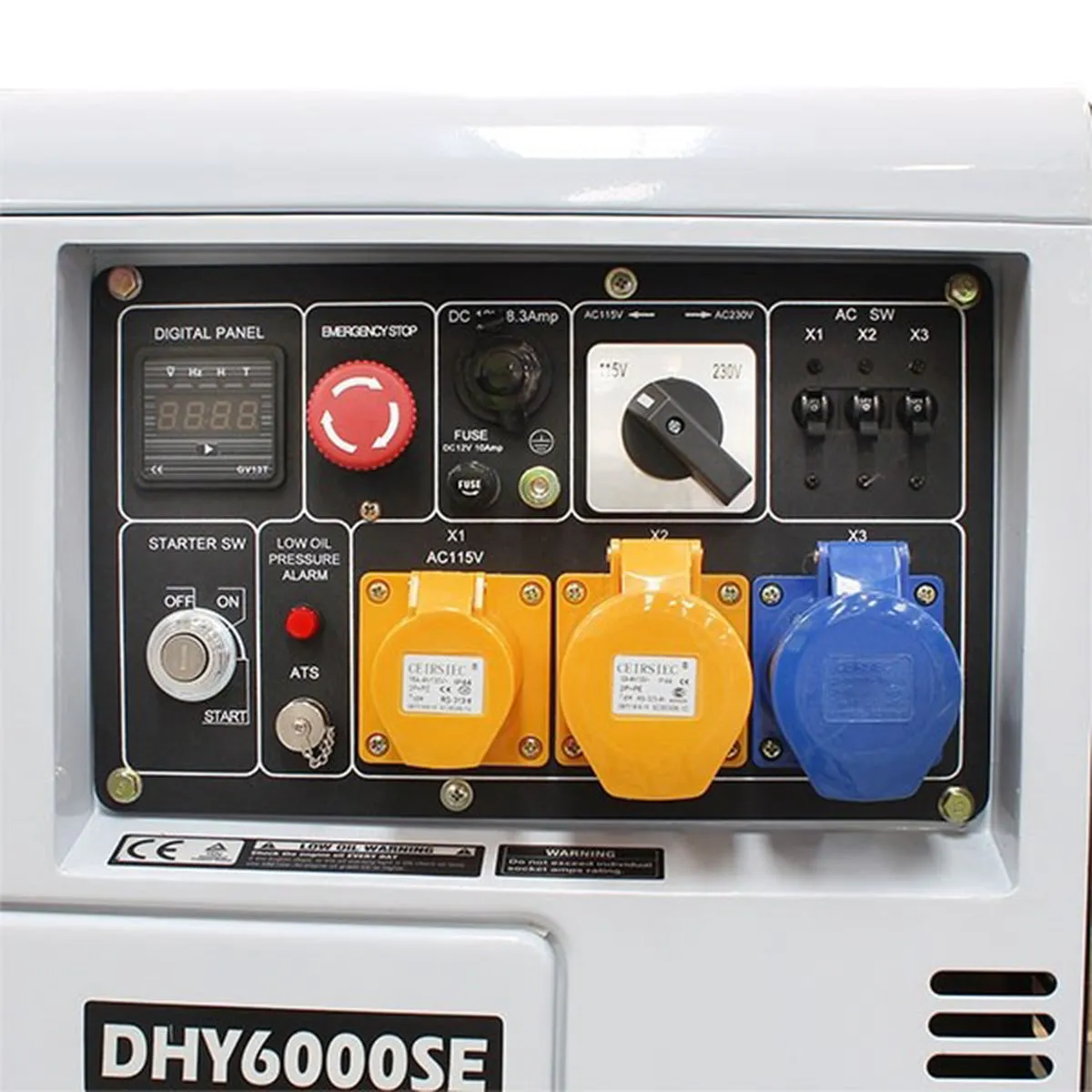

The Hyundai DHY6000SE is one of the most popular standby diesel generators available on the market today. The compact size, clean power output and low noise make it a reliable source of backup electrical power for your business or home and it is portable enough for fieldwork. Powered by Hyundai's efficient, low-emission, 4-stroke D420 10hp engine, it produces 5.2kW of clean power for your home or business. The generator has 1 x 115V 16amp, 1 x 115V 32amp, and 1 x 230V 32amp sockets, allowing you to power a wide range of equipment. It also benefits from a sophisticated AVR alternator. The large 13-litre fuel tank can provide up to 16 hours of run time @ 50% load and the DHY6000 has the ability to run off red diesel, making it even more cost-effective. The DHY6000SE features electric start and a convenient digital control panel which displays the frequency, voltage, and total run time. The backup power generator is compatible with an optional Automatic Transfer Switch (ATS).
Features:
Produces 5.2kW / 6.5kVA maximum output
Electric start with ATS compatibility
Efficient Hyundai D420 engine
Equipped with a large 13L fuel tank for a long running time
Comes fitted with safety features such as low oil alert and automatic engine shut down
Low noise sound attenuated canopy
Barcode: 6040001600025
Part Number: DHY6000SE
Brand: Hyundai
Model: DHY6000SE
Rated/Prime kVA*: 5.6
Rated/Prime kW: 4.5
Max/Standby kVA*: 6
Max/Standby kW: 5.2
Phase: Single
Voltage: 115 / 230
Connection Method(s): Sockets - 1 x 115V/16A, 1 x 115V/32A, 1 x 230V/32A
Rated Speed (RPM): 3000
Frequency (Hz): 50
Max/Continuous Current (Amps): 22.6/19.5
Power Factor (Cosφ): 1
Fuel Type: Diesel
Fuel Tank (Litres): 13
Runtime (Hours) @ 100% Load: 9.03
Noise Level @ 1m 75% load (dB): 96
Noise Level @ 7m 75% load (dB): 70
Hyundai Diesel Engine Model: D400E
Power Output (hp): 7.8
Engine Displacement (CC): 418
No. of Cylinders: 1
Displacement (Litres): 0.418
Recommended Oil Type: 15w40 / 10w40
Oil Capacity (Litres): 1.65
Oil Filter Part No.: D400-B9 D400-B8
Aspiration: Natural
Fuel Regulation/Governor System: Mechanical
Fuel Consumption (100% Load) [Litres]: 1.44
Fuel Filter Part No.: D400-R05
Cooling Forced: Air-Cooled
Alternator Model: D400-SO1-4
Breakers: 1P 28A 1P 19A 1P 13A
Alternator Type: Brushed
Voltage Regulation: AVR
Air Filter Part No.: D400-I4
Dimensions L x W x H (mm): 930 x 530 x 720
Battery (Ah): 12v 36a/h
ATS / MTS Compatible: Yes
Control Panel: LED3 Display
Net Weight (kg): 152
Gross Weight (kg): 158
Due to delivery restrictions we are only able to deliver this to UK Mainland addresses. Unfortunately if your delivery address includes the Scottish Highlands, Northern Ireland & The Isle of Wight then your order will get cancelled automatically.
**images for illustrative purposes only – please refer to description and specification for full details of product**
